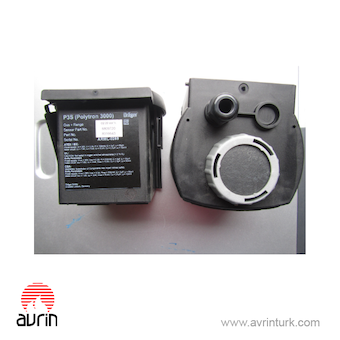

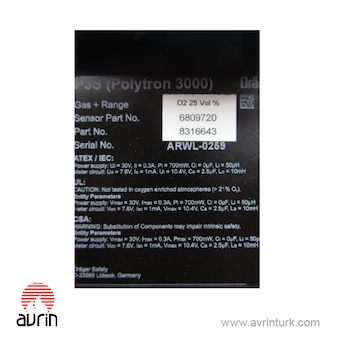

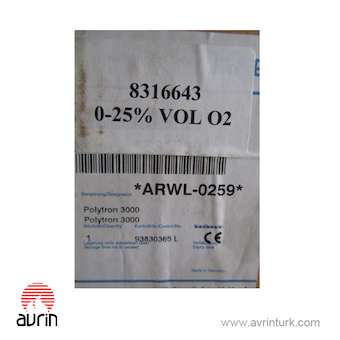

DRAGER POLYTRON 3000 DISPLAY

OZ 0-25% VOL2

8316643

CONTROL NO:93830365L

In environments where oxygen level monitoring is critical for safety, the Dräger Polytron 3000 Display (OZ 0-25% Vol2) stands as a trusted solution. Designed by Dräger, a global leader in safety technology, this gas detection system combines advanced sensor technology with rugged durability to protect workers and infrastructure in high-risk industries.

Key Features:

• Precision Monitoring: Measures oxygen concentrations from 0-25% Vol2 with high accuracy, ensuring compliance with safety standards.
• Robust Design: Built for harsh industrial environments (dust, moisture, temperature extremes) with IP-rated protection.
• Clear Display: User-friendly interface with real-time readings and alarms for immediate hazard response.
• Certified Safety: Complies with global safety standards (ATEX, IECEx) for use in explosive atmospheres.
• Traceability: Includes Control No: 93830365L for quality assurance and documentation.

Applications:

• Chemical Plants: Monitor oxygen levels in confined spaces or during chemical reactions.
• Oil & Gas: Ensure safe oxygen concentrations in refineries, pipelines, or offshore platforms.
• Pharmaceuticals: Protect personnel in controlled environments or gas storage areas.
• Water Treatment: Monitor oxygen levels in aeration tanks or wastewater facilities.
• Mining: Safeguard workers in underground or enclosed spaces.

Technical Data:

• Power Supply:    12 to 30 V DC, 2-wire
• Temperature (operation):  -40°C – 65°C
• Humidity:  0 to 100% r.h., non-condensing
• Pressure (hPa):  700 – 1300
• Dimensions (H × W × D):  0.17×0.14×0.13 m
• Weight:  0.9 Kg
• Housing Material  Glass fiber reinforced polyester (GFRP)
• Degree of protection (IP class)   IP66

MANUAL : polytron3000-manual
