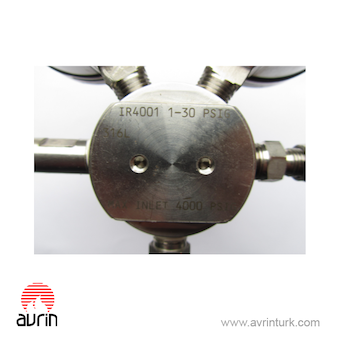

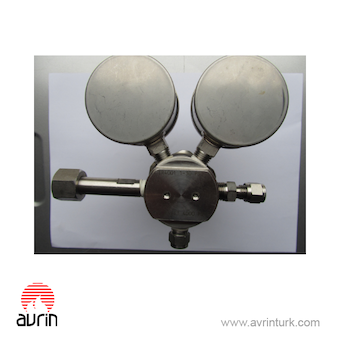

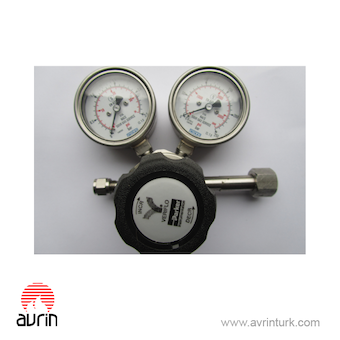

IR4001SK5PXX4B Parker Veriflo IR4000 Pressure Regulator

• Manufacturer: Parker Hannifin
• Product Type: High Pressure Regulator
• Adjustment Type: Knob
• Body Material: 316L Stainless Steel, Stainless Steel
• Diaphragm Material: C-22 Hastelloy
• Element Material: 316 Stainless Steel
• End Connection: Female Threaded
• Filter Rating: 10 µm
• Flow Capacity: 0.09 Cv
• Mounting Hole Diameter: 1.44 in.
• Outlet Pressure: 0 to 60 PSI
• Port 2 Size: 1/4 in.
• Port Size: 1/4 in.
• Pressure Gauge Included: No
• Seal Material: FKM
• Size: 2 in. Diam. x 4.91 in. H, 2.32 in. Diam. x 4.91 in. H
• Spring Material: X750 Inconel
• Temperature Rating: -40 to 150 Deg F
• Type: 1-Stage, General Purpose, 5-Port
