SWAGELOK VALVE STREAM SWITCH, SS-SSVM-V, YH5655001, SS-SSVM-V-F2, MAT’L:CF3M, 250PSI,100F,17.2BAR,37C

Description

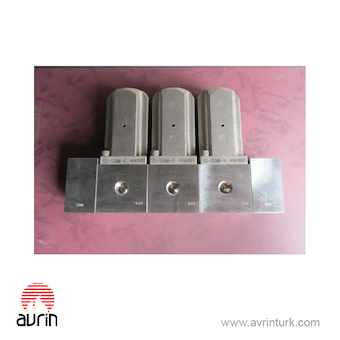

The Swagelok Stream Switch Valve SS-SSVM-V is engineered for precision flow control in sample handling, analyzer systems, and process switching applications. Built from CF3M stainless steel (corrosion-resistant casting equivalent to 316L), this valve delivers exceptional integrity and durability in chemically aggressive environments.

Equipped with reliable sealing technology and Swagelok’s leak-tight design, the SS-SSVM-V provides smooth actuation, positive shutoff, and excellent seat wear resistance. It is commonly used to switch between process lines, sample sources, or bypass paths in critical instrumentation circuits.

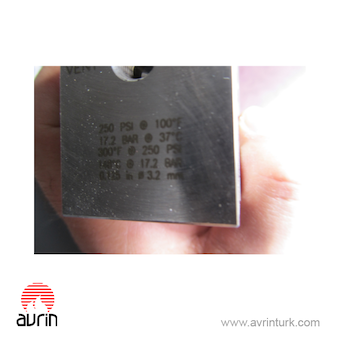

Rated for 250 PSI (17.2 bar) at 100°F (37°C), this valve supports safe operation in medium-pressure fluid and gas systems typically found in refining, petrochemical, analytical laboratory, and industrial automation environments.

---

✅ Key Features

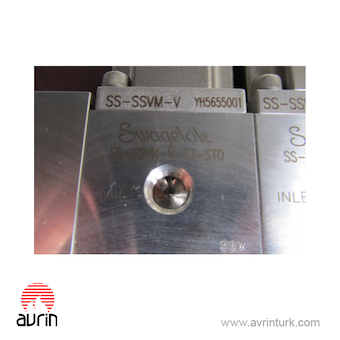

• Model: SS-SSVM-V

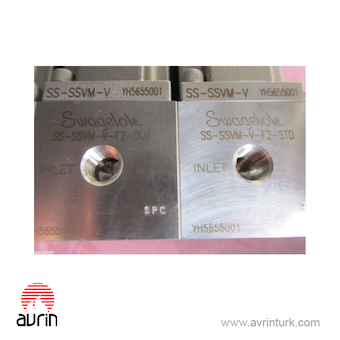

• Alternate Model: SS-SSVM-V-F2

• Part Number: YH5655001

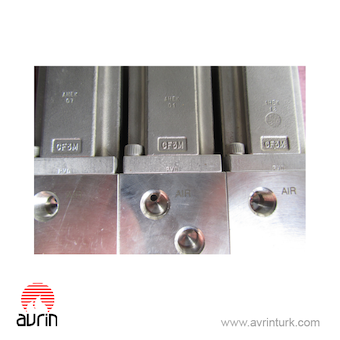

• Material: CF3M stainless steel (close to 316L)

• Pressure Rating: 250 PSI / 17.2 bar

• Temperature Rating: 100°F / 37°C

• Function: Stream switch / sample system switching

• Configuration: Compact flow path design for analyzer systems

• Actuation: Manual (pneumatic variants available by configuration)

• Sealing: Leak-tight, highly corrosion-resistant seats

---

🧪 Applications

• Analyzer sampling systems

• Gas and liquid stream selection

• Petrochemical process sampling

• Refinery stream switching

• Bypass and isolation functions

• Laboratory and pilot plant setups

---

💡 Benefits

• Excellent chemical corrosion resistance

• Tight shutoff and smooth switching

• Long service life under repetitive actuation

• Minimal dead volume for accurate sampling

• Compact footprint for panel mounting
