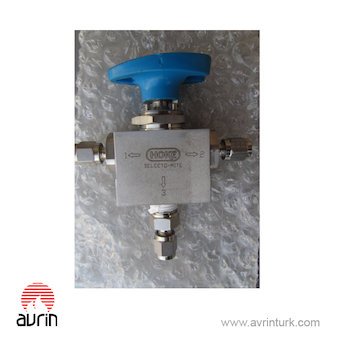

HOKE

3 WAY

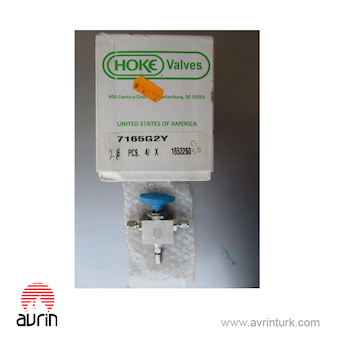

Model: 7165G2Y

500PSI 35BAR

316 SST

1216

End Connections 1/8″ Gyrolok
Body Material 316 Stainless Steel
Operating Pressure Range 500 psig (34 bar)
Operating Temperature Range -40 to +350 ºF-40 to +177 ºC
Orifice 0.093 in2.40 mm
Cv 0.15
C 1 15/16 in49 mm
E 3 7/16 in87 mm
G 1.75 in44 mm
H 2 in51 mm
H1 7/16 in11 mm
Panel Hole 57/64 in22.6 mm
Panel Thickness 3/16 in4.8 mm
Features & Benefits Handle points to the port in use or to the closed position, providing a visual cue and improved safety.
Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high-pressure applications, helping to prevent fugitive emissions.
Dual encapsulated TFE seats and micro-finished ball ensure a leak-tight seal. This combination provides greater valve reliability.
TFE seats and washers provide excellent corrosion resistance, providing the correct material for the application.
A wide variety of GYROLOK end fittings or pipe fittings provide the correct fitting option for the application.
Special High Tolerance NPT Thread
