Description

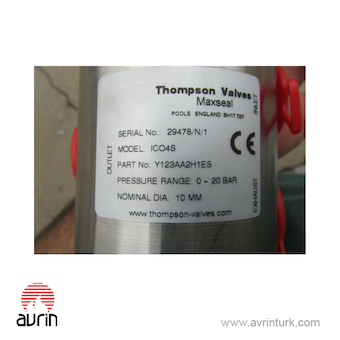

The MAXSEAL Solenoid Valve model ICO4S, with part number Y123AA2H1ES, is a high-performance, dual-seal solenoid valve designed for demanding industrial applications.
Key Features
- Dual-Seal Design: Ensures reliable sealing and performance in harsh environments, making it suitable for critical applications in industries like oil and gas.
- Pressure Range: Operates within a pressure range of 0-20 bar (290 psi), ideal for high-pressure systems.
- Nominal Diameter: Features a 10 mm nominal diameter with 3/8″ port size, ensuring precise flow control.
- Electrical Specifications: Compatible with 12.5V DC, 15.1W, providing efficient energy consumption.
- Ingress Protection: Rated IP66, ensuring protection against dust and water ingress, making it suitable for harsh environments.
- Materials: Constructed with 316 stainless steel for the valve body and trim, and high nitrile (NBR) for seals, ensuring durability and resistance to corrosion.
Applications
- Oil & Gas: Widely used in offshore and onshore oil and gas applications due to its robust construction and reliability.
- Pneumatic and Hydraulic Systems: Suitable for controlling pneumatic or hydraulic-operated equipment.
- Safety Instrumented Systems (SIS): Certified for use in safety-critical systems, ensuring high reliability and performance.
Technical Specifications
- Port Size: 3/8″ NPT or BSPP connections.
- Temperature Range:
- Media: -20°C to 90°C
- Ambient: 0°C to 60°C.
- Flow Rates:
- Cv = 4.2 USgpm for 1 psi
- Kv = 46 l/min for 1 bar.
- Certifications: Includes ATEX, IECEx, CSA, and GOST certifications, ensuring compliance with international standards.
Additional Information
- Coil Housing: Features a thermally efficient coil housing with reduced flux leakage and increased magnetic force, preventing coil burnout.
- Environmental Protection: Rated IP66, providing protection against moisture, dust, and corrosive chemicals.
- Weight: Approximately 6.0 kg, making it robust yet manageable for installation.
