MTL 706

The MTL 706 Shunt Diode Safety Barrier is a safety device designed to isolate electrical signals between hazardous and safe areas in industrial environments. It is specifically designed for use with 4-20mA transmitters and provides a safe and reliable interface between the transmitter and a control system in a safe area.

Specifications:

  • Model: MTL 706
  • Type: Shunt diode safety barrier
  • Input: 4-20mA
  • Output: 4-20mA
  • Mounting: DIN rail or panel mounting
  • Certifications: ATEX, IECEx, FM, CSA
$99,99

1 in stock

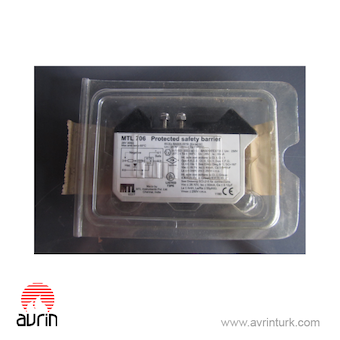

Measurement Technology MTL 706 Shunt Diode Safety Barrier T20914



The MTL 706 Shunt Diode Safety Barrier is a safety device designed to isolate electrical signals between hazardous and safe areas in industrial environments. It is specifically designed for use with 4-20mA transmitters and provides a safe and reliable interface between the transmitter and a control system in a safe area.

Key features and benefits:

  • Intrinsically safe: Ensures safe operation in hazardous environments by preventing the ignition of flammable gases or vapors.
  • Isolation: Provides electrical isolation between the hazardous and safe areas, protecting personnel and equipment.
  • Shunt diode technology: Utilizes shunt diodes for signal isolation.
  • 4-20mA transmitter compatibility: Designed for use with 4-20mA transmitters.
  • Loop-powered: Can be powered directly from the 4-20mA process loop, reducing the need for external power supplies.
  • Compact design: Suitable for space-constrained environments.
  • Robust construction: Built to withstand harsh industrial conditions.

Specifications:

  • Model: MTL 706
  • Type: Shunt diode safety barrier
  • Input: 4-20mA
  • Output: 4-20mA
  • Mounting: DIN rail or panel mounting
  • Certifications: ATEX, IECEx, FM, CSA

Applications:

  • Process control: Isolating signals from field devices in hazardous areas.
  • Remote monitoring: Transmitting data from hazardous areas to safe locations.
  • Signal conditioning: Improving signal integrity and compensating for cable losses.

Additional information:

  • Manufacturer: MTL Instruments
  • Power supply: Loop-powered
  • Ambient temperature: -20°C to +70°C
  • Humidity: 5-95% RH
  • Dimensions: 120 x 48 x 65 mm
