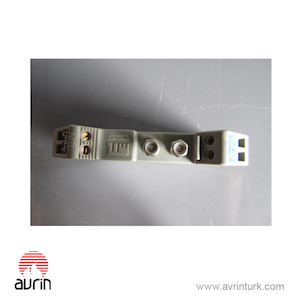

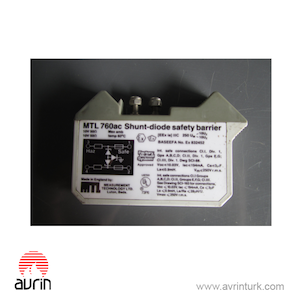

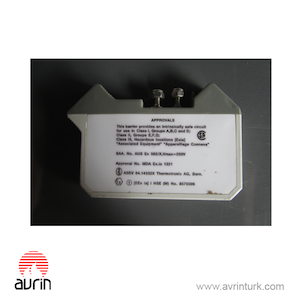

MTL MTL760ac / 760 ac Shunt-Diode Safety Barrier

The MTL 760ac Shunt-Diode Safety Barrier is a safety device designed to isolate electrical signals between hazardous and safe areas in industrial environments. It is specifically designed for use with AC voltage signals and provides a safe and reliable interface between the field device and the control system.

Key features and benefits:

• Intrinsically safe: Ensures safe operation in hazardous environments by preventing the ignition of flammable gases or vapors.
• Isolation: Provides electrical isolation between the hazardous and safe areas, protecting personnel and equipment.
• Shunt diode technology: Utilizes shunt diodes for signal isolation.
• AC voltage compatibility: Designed for use with AC voltage signals.
• Loop-powered: Can be powered directly from the process loop, reducing the need for external power supplies.
• Compact design: Suitable for space-constrained environments.
• Robust construction: Built to withstand harsh industrial conditions.

Specifications:

• Model: MTL 760ac
• Type: Shunt diode safety barrier
• Input: AC voltage (specific range may vary)
• Output: AC voltage (specific range may vary)
• Mounting: DIN rail or panel mounting
• Certifications: ATEX, IECEx, FM, CSA

Applications:

• Process control: Isolating signals from field devices in hazardous areas.
• Remote monitoring: Transmitting data from hazardous areas to safe locations.
• Signal conditioning: Improving signal integrity and compensating for cable losses.

Additional information:

• Manufacturer: MTL Instruments
• Power supply: Loop-powered
• Ambient temperature: -20°C to +70°C
• Humidity: 5-95% RH
• Dimensions: May vary depending on the specific model
