Maxseal Thompson SOV3 Solenoid Valve

Description

The Maxseal / Thompson SOV3 Solenoid Valve is a high-performance, direct-acting valve engineered for robust flow control in harsh industrial environments. Designed to operate within a 0–20 bar pressure range, the SOV3 provides fast, repeatable actuation for air, inert gases, and compatible fluids.

This model features an ICO4D Ex-rated solenoid housing, ensuring safe operation in hazardous or explosive-risk zones. The 110 VDC coil provides strong magnetic force for positive valve engagement, enabling dependable performance under vibration, contamination, and fluctuating supply conditions.

With a 20 mm nominal diameter, the SOV3 supports medium-flow service ideal for shutdown systems, pneumatic actuation circuits, control panels, and wellhead applications. Its size 3 housing provides additional mechanical robustness and improved thermal dissipation.

Widely used in oil & gas, chemical processing, and utility automation, Maxseal solenoid valves are known for long service life and minimal maintenance requirements.

---

✅ Technical Specifications

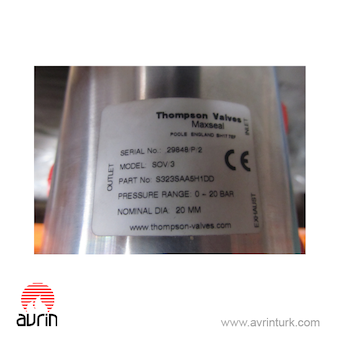

• Manufacturer: Maxseal / Thompson

• Model: SOV3

• Part Number: S323SAA5H1DD

• Operating Medium: Air, inert gases, compatible process fluids

• Nominal Diameter: 20 mm

• Pressure Range: 0–20 bar

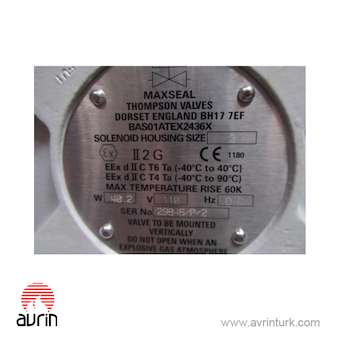

• Solenoid Rating: ICO4D Ex (hazardous-area compliance)

• Coil Voltage: 110 VDC

• Housing Size: 3

• Actuation: Direct solenoid actuation

• Duty: Continuous industrial service

---

🧪 Typical Applications

• ESD (Emergency Shutdown) systems

• Valve actuator pilot control

• Gas supply switching

• Wellhead control panels

• Pneumatic logic circuits

• Chemical dosing systems

• Analyzer shelter air logic

---

💡 Key Benefits

• Safe operation in hazardous environments

• Reliable switching under variable load conditions

• Compact assembly for panel integration

• High corrosion resistance

• Long cycle life in harsh atmospheres

• Supports safety instrumented functions
