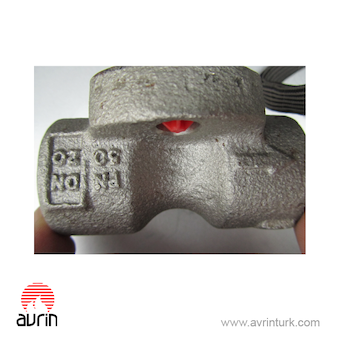

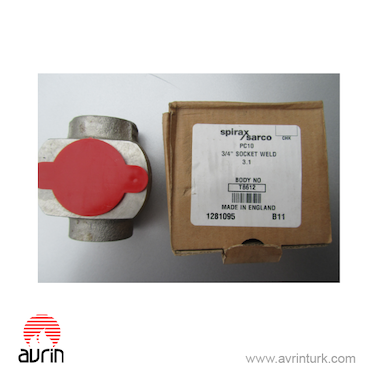

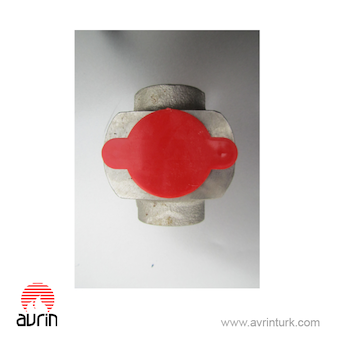

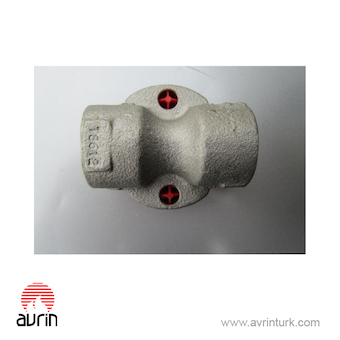

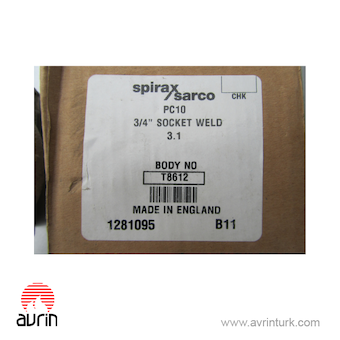

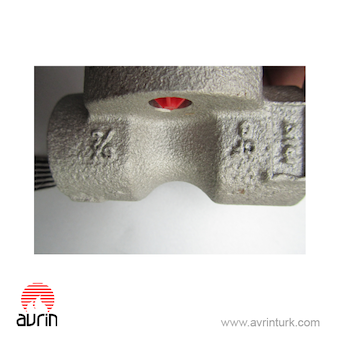

SPIRAX SARCO PC10 PIPE LINE CONNECTOR 3/4″SOCKET WELD PN50 DN20

Description

The Spirax Sarco PC10 Pipeline Connector is a compact connection system engineered to simplify installation and maintenance of steam system equipment. Featuring a 3/4″ socket-weld configuration and PN50 pressure rating, the PC10 provides a secure, leak-tight interface for components such as steam traps, check valves, and strainers.

Designed to reduce downtime, this connector allows plant personnel to quickly remove and replace devices without disturbing the surrounding pipework — improving efficiency and safety during inspection and overhaul. The DN20designation provides compatibility with standard metric pipeline sizing.

Manufactured by Spirax Sarco, a global leader in steam engineering, the PC10 is ideally suited for condensate management, heat transfer loops, and process control circuits found in petrochemical, food & beverage, power generation, and pharmaceutical facilities.

---

✅ Technical Specifications

• Manufacturer: Spirax Sarco

• Model: PC10

• Size: 3/4″

• Connection Type: Socket weld

• Nominal Diameter: DN20

• Pressure Rating: PN50

• Media: Steam, condensate, clean industrial fluids

• Function: Pipeline connector for inline component maintenance

• Operating Environment: Industrial steam/thermal systems

---

🧪 Typical Applications

• Steam trap station installation

• Condensate drainage points

• Heat exchanger loop connections

• Control valve maintenance interfaces

• Process steam lines

• Utility distribution stands

---

💡 Benefits

• Reduces steam system downtime

• Simplifies component replacement

• Maintains pipe alignment during servicing

• Safe, leak-tight connection under pressure

• Improves overall system maintainability
